Systems for Navigation and Energy management
On Yachts

Niche markets for yachting electronic devices

The electronic market is roughly divided in two:

  • Integrated ready to use systems by: Raymarine, Navico, Garmin, Furuno with Victron and Mastervolt for energy
  • DIY based on Raspberry PI and/or Arduino mixed with commercial devices

But there is space for intermediate products:

  • Ready to be installed and covering functions that are not well addressed by tier1 suppliers or very expensive
  • Based on Open-source software to allow empowerment of expert users
  • Also based on standard hardware platform to drastically limit the development cost
  • Sold as semi-finished products to avoid the big ticket for certification

To address sailboats and motorboats 7-18m

Candidate products

NMEA2000/NMEA0183 interface/message routeur

  • Interface instrumentation buses
  • Consolidate, filter and route over TCP/IP towards Navigation systems running on PC/ARM WS or Tablet

NMEA Messages (NMEA2000 and NMEA0183) message router

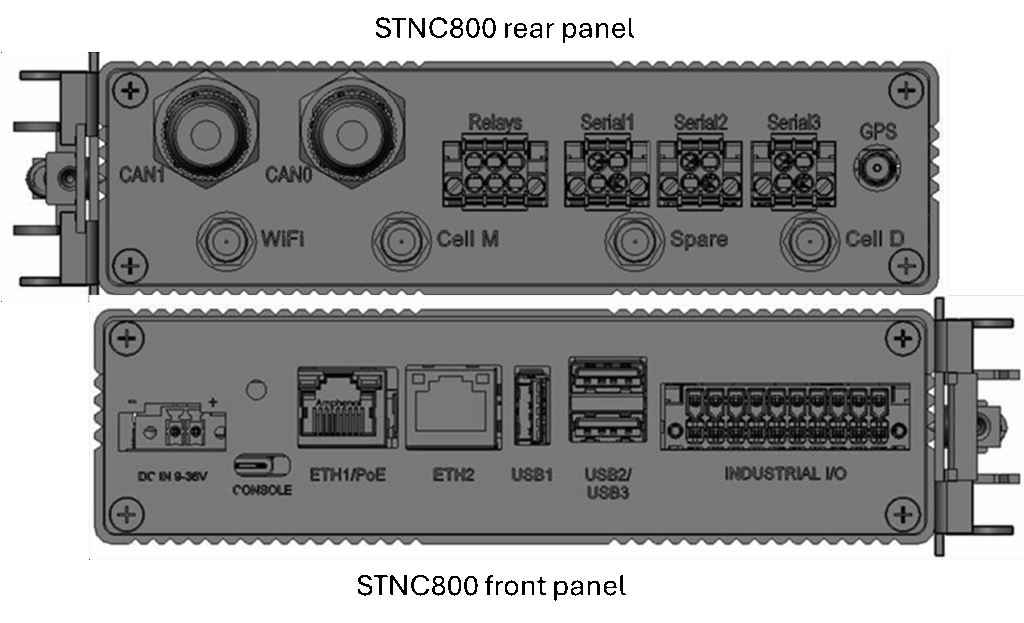

Key Hardware Features

  • CPU running Linux (ARM64 to be future proof)
  • RAM 2GB, eMMC 16GB.
  • Networking Ethernet and WiFi
  • USB 2.0 (3.0) X 2
  • NMEA2000 Micro-C interface
  • Power supply 9-36V with option via Micro-C
  • NMEA0183 via external devices
  • Standard casing (non-waterproof)

Key Software Features

  • NMEA2000 interface handling (CA & ECU) with network management
  • NMEA2000 and NMEA0183 messages routing
  • Multiple network adapter support (no direct NMEA2000 case)
  • Message filtering
  • Distribution via TCP towards navigation software with multiple protocols (Pseudo NMEA0183, gRPC/JSON, SignalK,…)
  • Integration of non NMEA sources
  • Remote control
